MODULE 3
PATTERN VS SURFACE
Module 3 is all about constructing a panelized terrain with customized patterns of our own interest. It trains students to use Rhinoceros, a 3D Modeling software to design interesting yet constructible patterns to be panelized on a customized terrain. This model also trains patience and exercise neatness in producing the actual 3D model.
DIGITAL PROCESS
Customized Terrain Template
Design of Models
Evolution of a double pyramid
Side View of Iteration
Showing the height variations
Topview of Iteration
Different direction of models
Isonometric View of Iteration
This paneling pattern is made with 4 point attractors for the height and 2 point attractors for the 3D Paneling variables. This iteration emphasises on the evolution of pattern from complex structures to simple ones; and vice versa. The direction of the models throughout the terrain changes. It is achieved by mirroring the four objects above and selecting them one by one from one end to another, obtaining eight object variables in total.

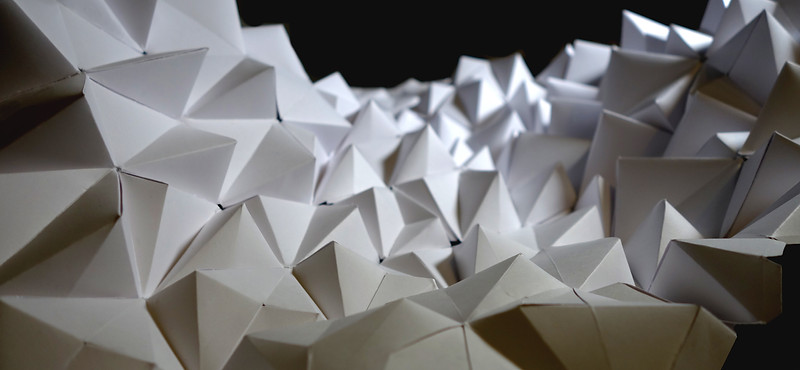

PHOTO ALBUM OF CONSTRUCTED MODEL
